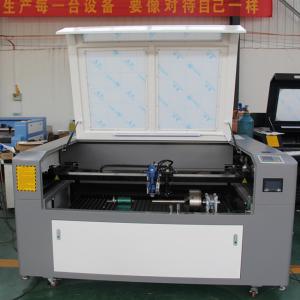

Big power metal nonmetal laser cutting machine 500W 600W mix laser cutter
Main Features of big power metal nonmetal laser cutting machine:
- Adopt Advanced Germany Mix Cutting Technology
- It supports both Metal and Non-Metal Cutting, can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF engraving and cutting.
- Advanced Laser Optical System
- Ensure Excellent Laser Beam Quality,can strongly improve the laser power and laser beam quality.
- Laser Path Pre-view & Pre-position Function
- Laser beam is in-visible,by adopting “Red Light Pointer” ,Realize the laser path pre-view and Pre-position function.
- Unique Mirrors and Lens Cooling Technology
- All mirrors and lens is cooled by water ,Takes the mirror heat during working,Prolong its’ lifetime ,Save future operation cost
- Dynamic Auto-focus Metal Sheet Laser Cutting Head:
- When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.
- Realize the accuracy of cutting effect.
- Advanced Colorful LCD Screen+ USB Port+ DSP Offline Control
- Support Both Metal and Non-Metal,Cutting Parameters,Support U disk, USB communication.
- Thicken Strip Working Table Specially Used for Cutting
- Meets the need of diversified laser procession,Heavy Loading,Suitable for cutting heavy and hard products
- Adopt Belt Transmission+Chinese Top Brand “Leadshine” Step Motor and Driving System configuration which has high cost performance
Applicable Industries :
Mainly used in advertising ,decoration industry (stainless metal and carbon steel related products),sheet metal industry (carbon steel ) ,packing industry (die board )and other related industry.
Applicable Materials :
Nonmetal materials ,like acrylic ,wood ,MDF,die board ,and so on . metal materials ,such as stainless steel , carbon steel ,etc
| Model | DW1530M big power metal nonmetal laser cutting machine |
| Working area | 1500*3000mm |
| Laser power | 150W/180W/280W/300W /500W/600W |
| Laser type | CO2 Glass laser tube |
| Engraving speed | 0-50000mm/min |
| Cutting speed | 0-20000mm/min |
| Power supply | AC380/220V/50/60HZ |
| Position accuracy | 0.01mm |
| Repetition accuracy | 0.02mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Guide rail | Taiwan high accuracy linear guider rails from Taiwan |
| Transmission method | Belt transmission(Ball screw transmission is optional) |
| Software supported | CorelDraw,PhotoShop,AutoCAD |
| Driving system | Stepper motor and Leadshine driver |
| Controlling software | RUIDA 6332M system |
| Mirrors and lens | Singapore mirrors and lens |
| Belt | SHANGHAI FULONG belt |
| Net Weight | 1200kg |
| Optional part | Red light pointer,up and down table , Rotary with chuck, |
| Packing | Plywood box |
SLW 600W laser tube :
Samples:
Why you can rest assured choice of our products?OEM?
----First, the strong production capacity
1.Using international top equipment, advanced developing and manufacturing processes
2.Multiple rigorous safety certification testing, ensure equipment performance
3.Every product must be strictly controlled, to ensure that 100 percent qualified before delivery
----Second, professional technical support
1.Have a professional management team and service team
2.For the industry, provide the most professional equipment operating, maintenance and repairing
3.One to one provide you with CNC machining solutions tailored for their processing need
----Third, the brand strength
1.Together with research, development, production, sales
2.Rich experience in production technology, equipment has high speed, high precision, high stability
3.We has passed the international quality certification standards, a number of product get patent certificate
----Fourth, the quality of service
1.Service users throughout the world, excellent reputation
